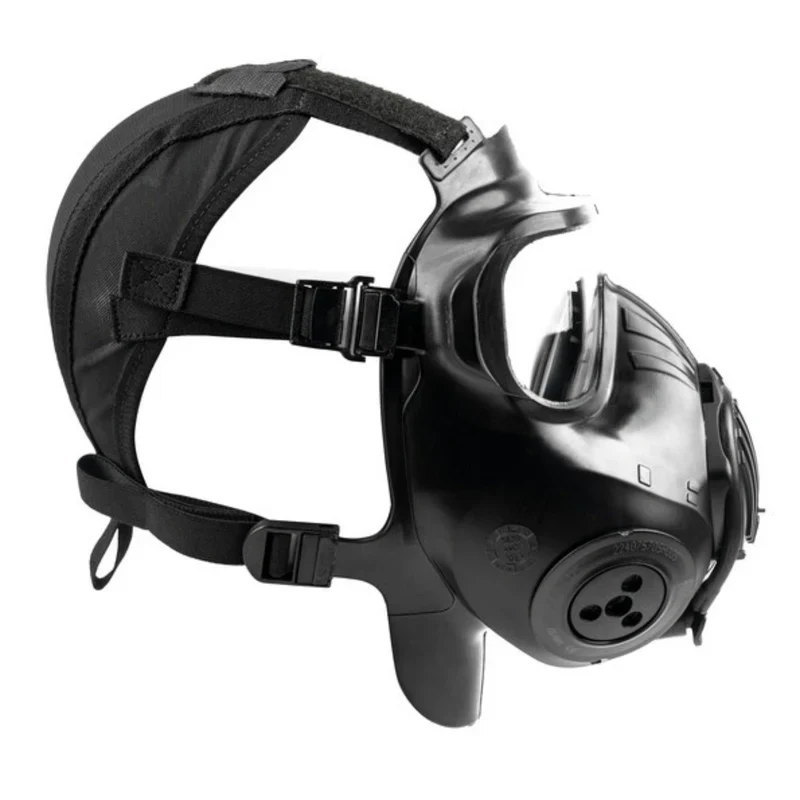

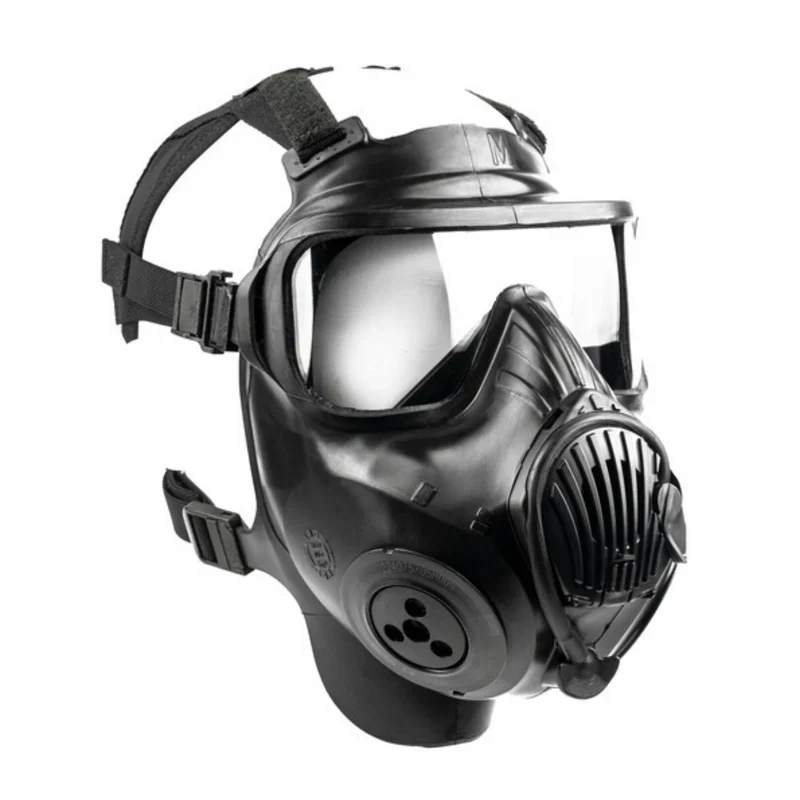

Avon C50 Twin Port

Description:

The Avon Protection C50™ protective mask shares key technologies with the U.S. M50/JSGPM (Joint Services General Purpose Mask) to provide maximum operational flexibility. It is capable of countering multiple threat scenarios, including chemical, biological, nuclear and radiological (CBRN) agents, toxic industrial chemicals (TICs), and toxic industrial materials (TIMs).

Performance

The C50 twin port mask is NIOSH CBRN Cap 1 approved with the CBRNCF50 filter (TC-14G-0318), NIOSH 42 CFR 84 riot control CS/CN/P100 approved with the CTCF50 filter (TC-14G-0322) and NIOSH 42 CFR 84 P100 approved with the CFP100 filter (TC-84A-9233). The C50 meets the latest NATO military requirements.

CBRN Agent Resistance	Requirement	C50 Performance
Mustard (H) / Sarin (GB)	36 hours	Greater than 36 hours
Soman (GD) / VX	36 hours	Greater than 36 hours
Laboratory protection factor performance (sodium chloride)	2,000	Greater than 10,000
Re-breathed CO2	Less than 1%	0.8%
Inhalation resistance at:
30 l/min	5 mm WG	3 mm WG
95 l/min	15 mm WG	13 mm WG
160 l/min	25 mm WG	23 mm WG
Exhalation resistance at 160 l/min	30 mm WG	15 mm WG
Mask weight	N/A	490 grams
NIOSH Visual Field Score (VFS)	90	96



Warnings and Limitation of Use

• Always perform a satisfactory negative pressure leak test before using this respirator.
• Do not use in confined spaces such as stills, tanks or sewers. This device does not provide supplied breathable air.
• It is unlikely that the requirements for inward leakage of the system will be met if facial hair, or spectacle side arms pass under the face seal of the full face mask.
• Do not use this equipment in Oxygen deficient atmospheres (<19.5% Oxygen) or for airborne contaminants or pollutants for which the approved filter canister(s) will not provide adequate protection.
• Do not use this equipment in Oxygen enriched atmospheres (> 22.5% Oxygen).
• System set-up, pre-check, donning, doffing, cleaning and maintenance must be performed in an area known to be free of contaminants.
• Do not use if any system component demonstrates signs of wear or damage.
• Do not use in areas where the head harness may be exposed directly to flame.
